4 BOLT GAUGE WITH ADJUSTABLE FLOAT FOR LOW PRESSURE TANKS (0 – 25 PSIG)
Ordering Notes: Please allow 1/2” or more for clearance between float arm and bottom of tank. For example, a tank depth of 30” should have a gauge length of 29-1/2”.
Application
The 6500 Series Senior gauges are designed for use in low pressure tanks 0-25 psig [0-1,7Bar] containing diesel fuel, gasoline, fuel oil and lubricating oils.
Used in many applications such as construction equipment, stationary generators, boats, farm equipment and home heating.
General Information & Features
The 6500 Series Adjustable Senior gauges are available in gear-action models for top mounting.
The standard float is nitrile rubber. The gauge is mounted to a mating Senior flange 2 1⁄2″ bolt circle [63,5mm] using four 1⁄4″-28 x 9⁄16″ long bolts. The included gasket is Buna-N.
General Specifications*
- Accuracy: Accuracy depends upon proper gauge sizing. Senior dials ±7%, TwinSite dials ±12%. Accuracy may be less depending upon tank shape. Accuracy may be less near full and empty. Accuracy may be less if tank is not level. This gauge is not to be used for filling. All accuracy estimates are expressed as a percent of full scale.
- Temperature: -40°F to 158°F, -40°C to 70°C.
- Humidity: Point exposed portions of gauge, less dial, for marine applications.
- Shock & Vibration: Suitable to mobile applications.
- Power: 0.5 watts maximum for TwinSite versions.
- Tank Pressure: Up to 25 PSIG [1,7 Bar].
- Approvals: These direct indicating gauges are UL listed for flammable liquids. Some models UL recognized for marine service.
Materials of Construction*
- Head: Die cast aluminum.
- Centershaft, Support Tube & Float Rod: Tempered aluminum.
- Gears, Cross Stud & Bearing: Stainless steel.
- Drive Magnet: Alnico.
- Gear Housing: Acetal plastic or Aluminum.
- Float: Nitrile rubber.
- Gasket: Buna-N, 0015-00004 or 0015-00079.
- Direct Reading Dial: Aluminum with acrylic crystal, hermetically sealed.
- Side Reading Dial: Aluminum with polycarbonate crystal, hermetically sealed.
- TwinSite Sender: Polyamide.
- Mounting Bolts: Zinc-plated steel 1/4″-28 x 9/16″ long.
*Materials and specifications are subject to change without notice. Pressure ratings subject to change due to temperature and other environmental considerations.

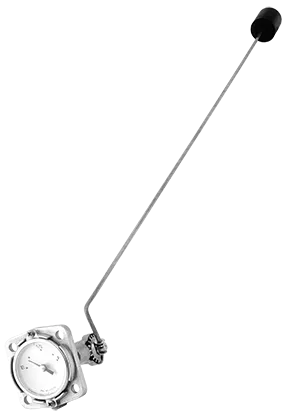

This 6580-151 includes our Cut & Crimp service where we adjust the float arm to the length selected from the drop-down menu. This is the measurement from the underside of the gauge head to the end of the float. Gauge lengths over 33" are made by adding a float arm extension. If you would like a different length, just give us a call and we can probably take care of it for you. (804)462-5679.
