Rochester Gauges 6700 Series 5-Bolt Fuel Gauge for Gas or Diesel Fuel Tanks

Rochester Gauges 6700 Series 5-Bolt Fuel Gauge for Gas or Diesel Fuel Tanks

$ 18.81

$ 0.00

Save: $

Size:
  • S3F115
  • S3F125
  • S625F600
  • S15F14
DialCapsuleType:
  • DirectRead
  • TwinSite24030Ohms
  • TwinSite090Ohms
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

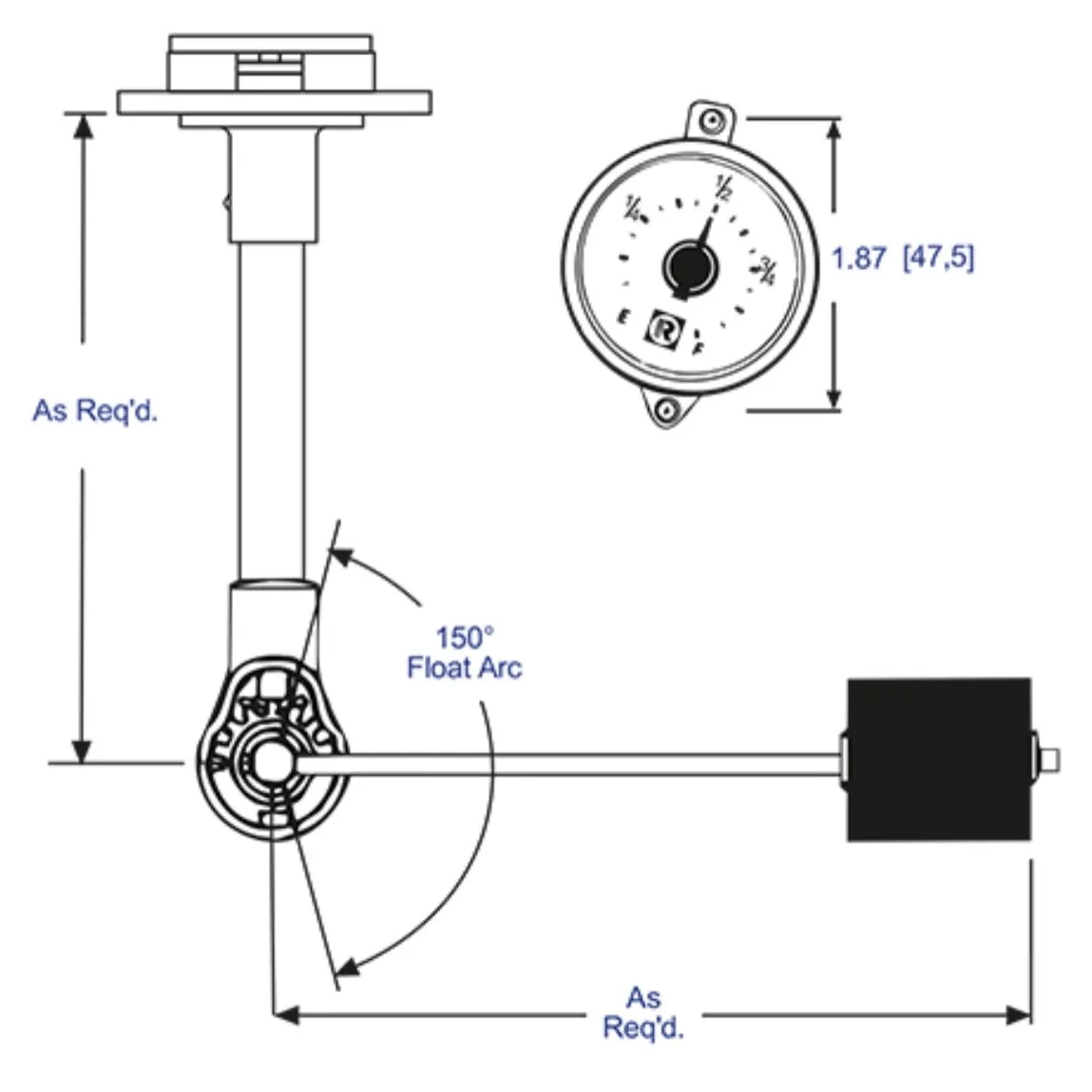

6700 SERIES GAUGE

5 BOLT GAUGE FOR GASOLINE OR DIESEL FUEL TANKS

Application
Measures gasoline or diesel fuel levels in tanks on trucks, boats, generators, recreational vehicles, and other applications.

General Information & Features
These top mounting magnetic liquid-level gauges are built to the high standards of all Rochester designed instruments. The construction permits the replacement of dials when necessary without releasing fumes or liquid to the atmosphere.

Both available types of dials are fractional and silicone-dampened, and are easily replaced by removing and reinstalling two screws. Rochester’s rugged gear drive incorporates shrouded, stainless-steel, beveled gears designed to work out any loose particles that might affect gear function. Sealing between the gauge and the tank is achieved through the use of the 0015-00423 Buna-N gasket.

General Specifications*

Mounting
Recommended for top-mounting only.

Accuracy
Accuracy depends upon proper gauge sizing. Junior dials ±6%, TwinSite® dials ±10%. Accuracy may be less depending upon tank shape. Accuracy may be less near full and empty. Accuracy may be less if tank is not level. This gauge is not to be used for filling. All accuracy estimates are expressed as a percent of full scale.

Temperature
-40°F to 158°F, -40°C to 70°C.

Humidity
For high humidity and marine applications, painting of gauge, less dial, is recommended.

Shock & Vibration
Suitable to mobile applications.

Power
0.5 watts maximum for TwinSite® versions.

Tank Pressure
0 to 10 PSIG [0 to 0,68 Bar].

Approvals
Some models are UL recognized for marine service. Some models are UL listed for flammable fluids. Passes BIA fire test.

Note: For Installation Instructions see MS-532, available on this website's support page.

*Materials and specifications are subject to change without notice. Pressure ratings subject to change due to temperature and other environmental considerations.

Materials of Construction*

Head
Die cast aluminum with standard SAE gasoline gauge flange (2-1/8″ [54 mm] bolt circle fop 5 #10 screws. Screws not furnished.)

Centershaft, Support Tube & Float Rod
Tempered aluminum.

Gears, Cross Stud & Bearing
Stainless steel.

Drive Magnet
Alnico.

Gear Housing
Acetal plastic or aluminum.

Float
Nitrile rubber.

Gasket
Buna-N, 0015-00423.

Direct Reading Dial
Hermetically sealed polycarbonate.

TwinSite® Sender
Polyamide.

When Ordering Specify:

1. Gauge model number.
2. Tank depth.
3. Float arm orientation to lead hole, if required.
4. Details on any optional features.
