The 9341-R7000, also referred to as the 9341-7000, is a marine grade sending unit manufactured by Rochester Gauges. This sending unit is equipped with a thick film resistance card with a range of 240-30 Ohms.  It is manufactured for installation into a standard SAE 5-bolt hole flange.  Included with the product is an adjustable length float arm that must be cut to length to fit your tank.  There are two options for the length of the float arm, as follows:

There are two options for the length of the float arm, as follows:

• Tank depth range of 6" to 15"
• Tank depth range of 6" to 25"

This item includes and ships with:

• 9341 sending unit head
• Adjustable length float arm
• Matching Rochester Gauges gasket
• Cylindrical nitrile rubber float
• Stainless steel washer

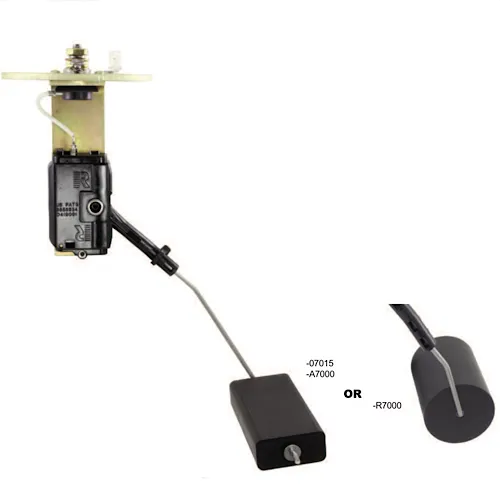

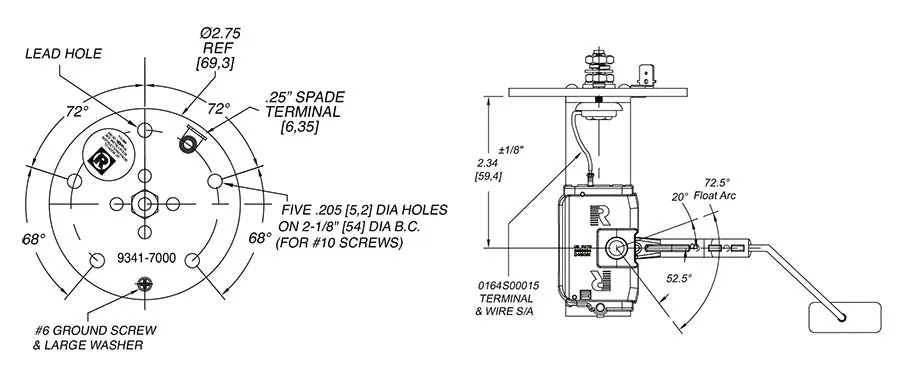

NOTE:  The sending unit in the image gallery drawing has a flat, rectangular float whereas the 9341-R7000’s float is cylindrical.
